148″ Tall Roof

* SPECIAL ORDER ONLY *


The Tall-Roof Type II provides an exceptional cost-effective solution for your day-to-day transport needs. This model provides more working space inside than our other models, and even with its size it is still one of the most efficient units to operate on the road. The Transit is rapidly becoming one of Ford's true workhorses in the US. Sufficient space and cost-effective operating expenses and maintenance; it's an excellent choice for day-to-day operations.

Engine 3.7L Ti-VCT V6 GASOLINE (Twin Independent Variable Cam Timing)
Transmission 6-Speed Automatic Transmission
Interior Dimensions Length: 143 inches (From Bulkhead to Rear Door)
Height: 81 inches (Center)

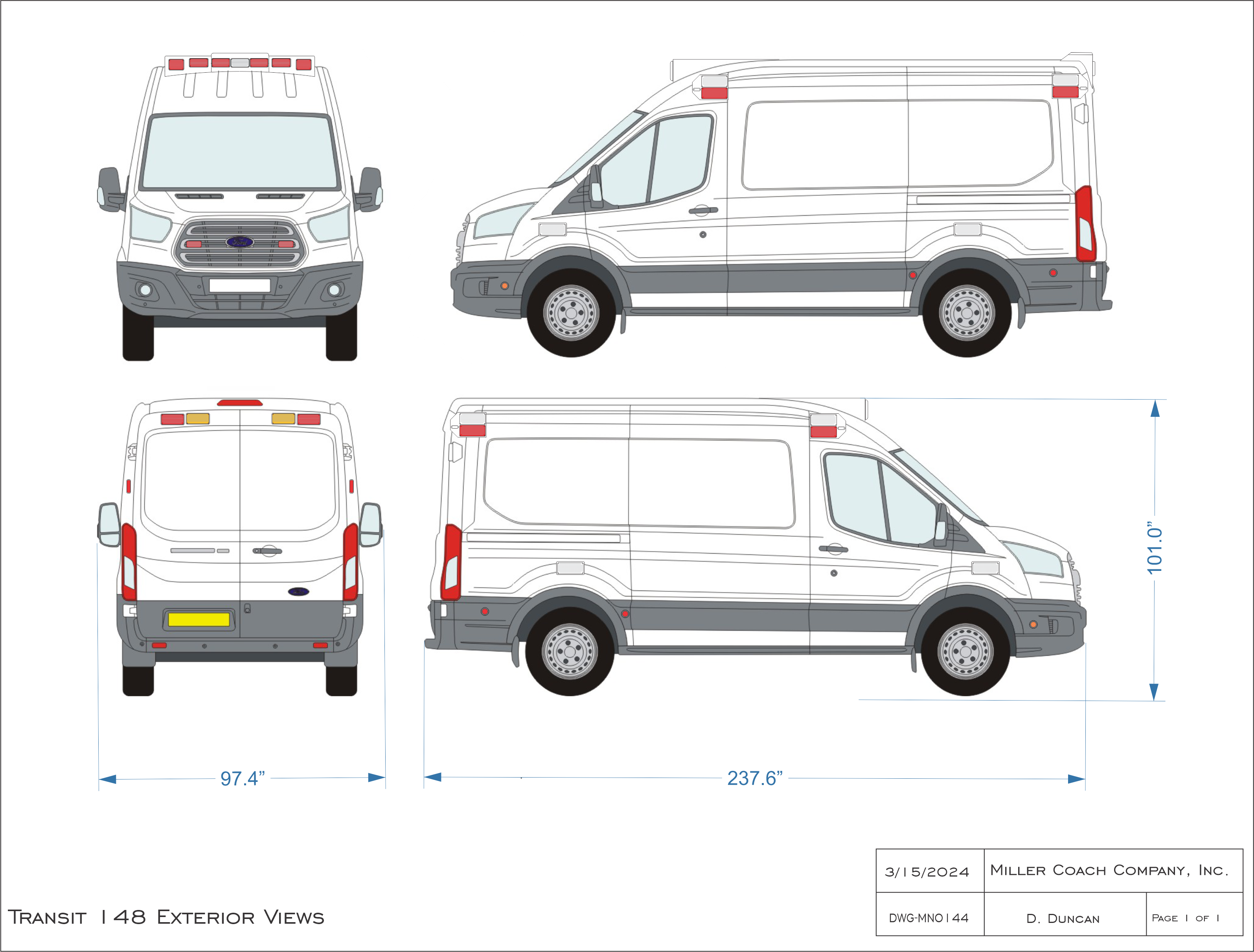

Exterior Dimensions Length: 237.5 inches
Height: 110 inches
Width: 98 inches (With Mirrors)
Weights GVWR: 9,000 lbs
Curb Weight: 5,730 lbs
Useful Payload: 3,270 lbs
Chassis Features Upgraded Alloy Wheels, 10-way Power Seat, Tilt-Telescoping Steering Wheel, Power Locks/Windows, Power/Heated Mirrors, Speed-Control, Built-in Backup Camera
LED Lighting Standard All Lighting, All Models, Additional Intersection Lighting Included
Inverter Standard All Models
2015_transit_floorplan_2
All Seats Swivel with stops at 45 and 90 Seat Bases fold-up and out of the way when not needed. Portable 02 storage under rear curbside seat Lockable Storage under Attendant Seat Configuration shown with Walk-Thru Option.
img_0617-w1280-h8530himg_0619-w1280-h853p 2015_transit_floorplan_2
All Seats Swivel with stops at 45 and 90 Seat Bases fold-up and out of the way when not needed. Portable 02 storage under rear curbside seat Lockable Storage under Attendant Seat Configuration shown with Walk-Thru Option.

GENERAL
REAR STEP BUMPER: Integral to Ford Body
HVAC: PROAIR Series Heat/Air system. Air is vented to 4 adjustable vents mounted at the top of the streetside cabinets. Mounted behind Driver PROAIR Specifications 941 Series - Up to 32,000 BTU/HR/Cool - Up to 32,000 BTU/HR/Heat - 630 CFM - 3 Speed Fan FLOORING: LONCOIN Tear/Gouge resistant Bio-Safe Flooring with rolled edges. Easy to clean coin pattern. Colors can be Sapphire or Onyx
UPHOLSTERY: Vinyl Bio-Safe upholstery on finish surfaces, Bulkhead, Oxygen Storage, and Head Protection. Cobalt Blue or Grey in color
SAFETY RAIL: 6-foot Stainless Steel Safety Rail mounted off center toward Street Side. 1 1/2 inch diameter mounted through finish ceiling into 1/4 inch affixed backing plate.
IV HOOKS: Cast Fold away IV Hooks mounted in Ceiling. One mounted over forward Cot Area, one mounted on Curbside.
COT RETENTION: The following Retention Systems can be installed: - Stryker Power Load - Stryker Performance Load - Stryker 637x Series Cot Retention Systems - Ferno STAT-TRAC Systems - Ferno 175-x Series Cot Retention Systems SIDE GRAB BAR: Full height Grab Bar located at the back of the side door to assist in ingress/egress. 1.25” solid bar., 65.5” tall. Hard mounted to chassis.
ELECTRICAL
INVERTER/CHARGER: Xantrex 1000 Watt Inverter Charger w/ Shoreline Connection Drivers Side. All controls at Action Wall includes voltage indicators and Load indicator. 55 Amp Charger with intelligent charging and battery conditioning.
110 VAC OUTLETS: 1 at Action Wall, 1 on Curbside at back of side door. Up to 2 additional can be added. Duplex GFI outlets with ON indicator
12 VDC AUXILIARY OUTLETS: 1 12VDC Outlet and 1 USB Lighted Power Outlet each at the Action Wall and Curbside Wall.
SIREN: Carson SA500 200 Watt Yelp/Wail/Hi-Lo with Public Address and Horn Ring interface. Can be interfaced to Radio.
SIREN SPEAKERS: Cast Products SA6117 15FTC Dual Siren 200 Watt Speaker Each, Under the Bumper Mount (Center Mounted Under the Bumper)
HVAC CONTROL: PROAIR Digital Controller. Temperature Indicator with setpoint display. Low, Medium, and High Fan Settings with Heat, Cold, and Auto Modes
FRONT CONSOLE: Between Cab seats Switches on top. Voltage Meter mounted in switch plate. Audible low voltage indicator with visual warning light. Automatic Reset. Door Open Indicator. Backlighting on all switching. - Master Switch disconnects all Ambulance Power - Primary/Secondary Emergency Lighting - Left, Right Scene Lights and Rear Load ACTION WALL CONSOLE: Mounted in Action Wall, this console controls Dome Lights, Map Lights, Suction Pump and Vent Fan. Backlighting on All switching
LIGHTING
DOME LIGHTS: Center mounted LED dome lights with High and Low intensity. Dome lights turn on at low intensity with side and rear door opening
AUX CABINET LIGHTS: Soft Glow light mounted under action wall provides indirect lighting for night time transport as an alternative to the higher intensity dome lights. Includes both White and Red modes.
MAP LIGHTS: Soft Glow light mounted over seating provides indirect lighting for night time transport as an alternative to the higher intensity dome lights. Includes both White and Red modes
FRONT LIGHTBAR: Miller Coach Housing with 5 K70, and 2 K40 Series Super High Intensity LED Lights. Standard Lighting Package includes 6 RED LED's w/ Clear Lens and 1 Center White LED. KKKFlash Pattern with Primary/Secondary. Local Jurisdiction Regulation Lighting Available all States.
REAR LIGHTBAR - EXTERNAL: Miller Coach Housing with 6 K40 Series Super High Intensity LED Lights. Standard Lighting Package includes 4 RED LED's w/Clear Lens and 2 AMBER LED’s w/Clear Lens. Lightbar includes D30 Series Load Light. FORD 3rd Brake light moved to top of bar. KKK-Flash Pattern with Primary/Secondary.
REAR LIGHTBAR - INTERNAL (OPTIONAL): Dual side by side Cast housing mounted on each Rear Door. Housings contains 1 RED and 1 AMBER K70 Series Super High Intensity LED Lights (each door). 4 K50 Series Super High Intensity LED Lights are mounted at the top of the rear door on the inside. The outside lights operate when the doors are closed, and the inside lights will activate when the doors are opened. Outside lights are disabled when doors are open. There are 2 D30 Series Load Lights mounted on the rear when using the Internal Bar Option
CORNER PODS: Cast Housings with 1 Tecniq K70 Series LED Scene Lights, 1 K70 Emergency Light RED Lens and LED Marker Light (Amber Front/Red Rear). Lights Typical all 4 corners. KKK Flash Pattern.
EXTERIOR REAR POSTS: LED Lights mounted on rear of unit. RED Lens. High Intensity KKK-Flash. The vertical designed lens is mounted high on the posts for better visibility.
INTERSECTION: K70 Series Super High Intensity LED Light. LED Light Mounted over Rear and Front Wheel wells. Lights mounted low for extra visibility.
GRILL: 2 TECNIQ K50 Series Super High Intensity LED 2 Lights w/Clear Lens mounted at Grill.
RUBRAIL - FRONT: Small 1" AMBER Light mounted on Front Bumper used as Master Switch Indicator. Designed as a reminder that the Master Switch has been left on when walking away from unit.
RUBRAIL - SIDE: Small 1" Lights Mounted on each side on the Rub Rail for extra visibility. RED w/Clear Lens Rear, AMBER w/Clear Lens Front. In Non-Emergency mode, lights activate with Marker Lights. When Primary Emergency lights Activated, Lights follow KKK-Flash pattern.
MEDICAL
OXYGEN SYSTEM - OUTLETS: 2 Amico Ohio Type Outlets Mounted at Action Wall. System operates up to 50 psi. and tested to 150 psi.
OXYGEN SYSTEM - BOTTLE STORAGE: Bottle Mounted at Rear Door Streetside in valve accessible cabinet. Door removes for easy bottle changeout.
SUCTION SYSTEM: SSCOR Regulator and built-in Suction Pump. Quick Change, easy to remove Aspiration Container mounted below controls at Action Wall
